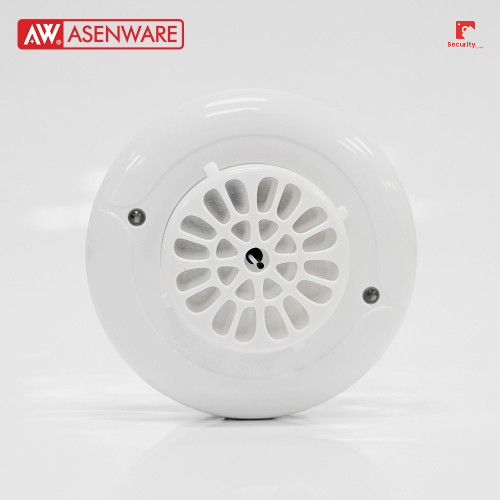

4 wire Conventional fire alarm 24V heat detector with relay

Description

The AW-CTD382-4W 4 wire Conventional fire alarm heat detector 24VDc with relay uses thermal component to detect the temperature changing in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value or/and the temperature achieved fixed temperature. It is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturer.

Features

1.Surface mounting

2. LED indicator

3.Complete functional test with every activation

4. Meets all requirements of latest EN54-5:2000

Technical Specification

Operating Voltage	9～28VDC
Operating current(@ 24VDC)	NO Standby current≤120uA, Alarmcurrent≤20mA
Operating current(@ 24VDC)	NC Standby current≤12mA, Alarmcurrent≤5mA
Application	For indoor use only
Wiring	Terminal 6: DC24V Terminal 5: DC24V
Wiring	Terminal 3: Alarm output Terminal 2: Alarmoutput
Fix Temperature Alarm	57℃(135°F) A2R
Rate of Rise Alarm	7.1℃/5s A2R
Environmental	Temperature range: -10 to 50°C(14~122°F)
Environmental	Humidity: 5 to 95% RH, non-condensing
