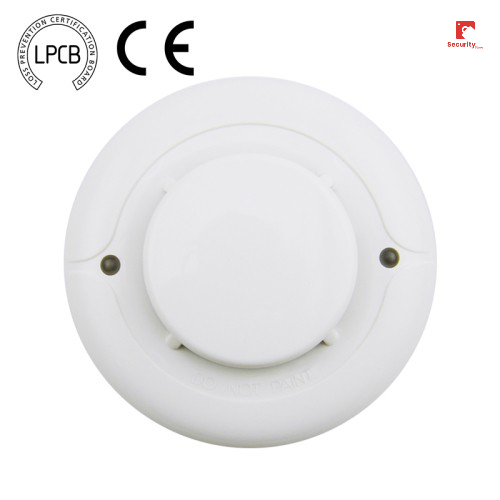

4 wire Conventional fire alarm 60V smoke detector with relay

SKU: AW-CSD381-4W 60V Category: Conventional Fire Alarm System with LPCB Certificate

Item No.: AW-CSD381-4W 60V

The AW-CSD381-4W 4 wire Conventional fire alarm smoke detector 60VDc with relay uses a state of the art optical sensing chamber.

Description

The AW-CSD381-4W 4 wire Conventional fire alarm smoke detector 60VDc with relay uses a state of the art optical sensing chamber. This detector is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturers.

Features

1.Surface mounting

2. LED indicator

3.Complete functional test with every activation

4. Meets all requirements of latest EN54-7:2001

Technical Specification

Main Voltage	24-60VDC
Operating current(@ 60VDC)	NO Standby current≤1.2mA, Alarmcurrent≤8mA
Operating current(@ 60VDC)	NC Standby current≤5mA, Alarmcurrent≤4mA
Application	For indoor use only
Wiring	Terminal 6: DC Input Terminal 5: DCInput
Wiring	Terminal 3: Alarm output Terminal 2: Alarm output
Smoke Alarm Sensitivity	0.18 to 0.3 dB/m
Environmental	Class A temperature range: -10 to 50°C(14~122°F)
Environmental	Humidity: 5 to 95% RH, non-condensing
Protection class	IP30
