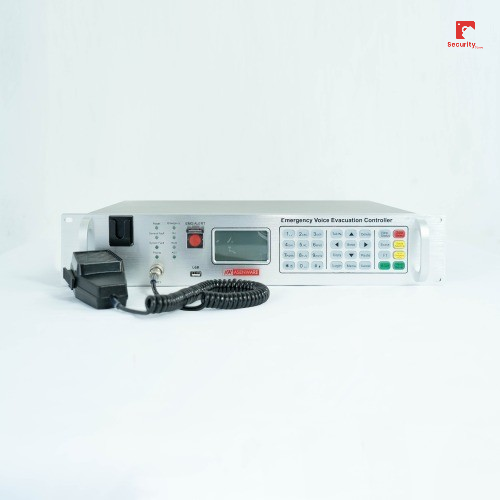

Emergency Voice Evacuation Controller (Cabinet Type)

You are not logged in.

SKU: AW-EVC100 Category: Voice Evacuation System

Item No.: AW-EVC100

AW-EVC100 emergency voice evacuation controller is suitable for communication and dispatch in case of fire or emergency in the building.

inc. VAT

Technical Parameters

Rated input voltage	~ 100V-260V, 50/60Hz
Maximum current	T3.15A
Working environment	Relative humidity (<95%) at -20 ~40 ℃, no condensation)
Standby Audio Output	Balance 1V,<0.3% 1KHz
MIC1/MIC2 input sensitivity and frequency response	Balance,10mV/80Hz~10KHz±3DB
MIC1-2 input SNR	>70dB
AUX1-2 input sensitivity and frequency response	Unbalance,350mV/20Hz~20KHz±3DB
AUX1-2 Input SNR	>90dB
Paging Input Frequency response	20HZ-20KHZ±3DB
Alarm Input	20 channel
Paging Distance	>=600m(with CAT-5E OFC cable)
Remote MIC communication	CAN bus
Slave Controller Communication	RS485 bus
Battery Input Voltage and Current	24V DC±20%/3A
