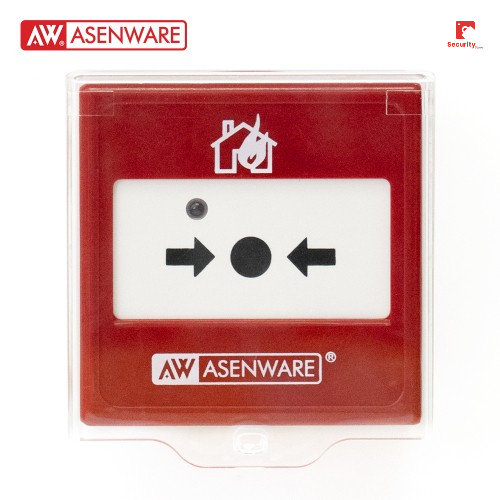

Wireless Manual Pull Station

Description

AW-D135W wirelessManual Pull Station is mainly designed to be use with a wireless control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual call points.

Product characteristics

1. Semi-flush or surface mounting

2. Lever reusable (non-glass break)

3. LED indicator

4. No wire connection(easy to install)

5. Full electronic coding, through AW-FR100 encoder scene rewrite

6. Compatible with the latest EN-11 standards

Technical Parameters

Operating Voltage	2 to 3VDC (with battery CR17450 or CR17330)
Operating Current	Monitoring status≤20uA, alarm status≤100mA
Operating Frequency	428MHz to 438MHz
Operating Temperature	-10℃～55℃
Relative Humidity	≤95% (non-condensing)
Protection class	IP30
Application	For indoor use only
Encoding	Coded by the encoder, the address range from 1 to 250 optional
Materials and Color	ABS, red
